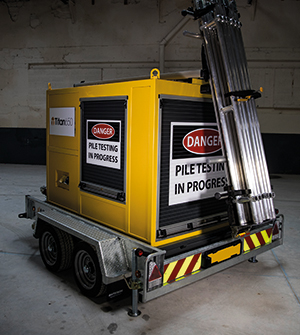

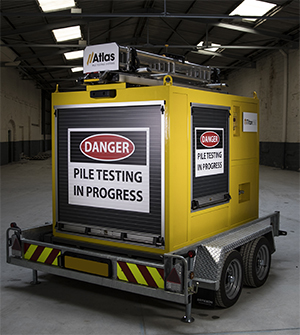

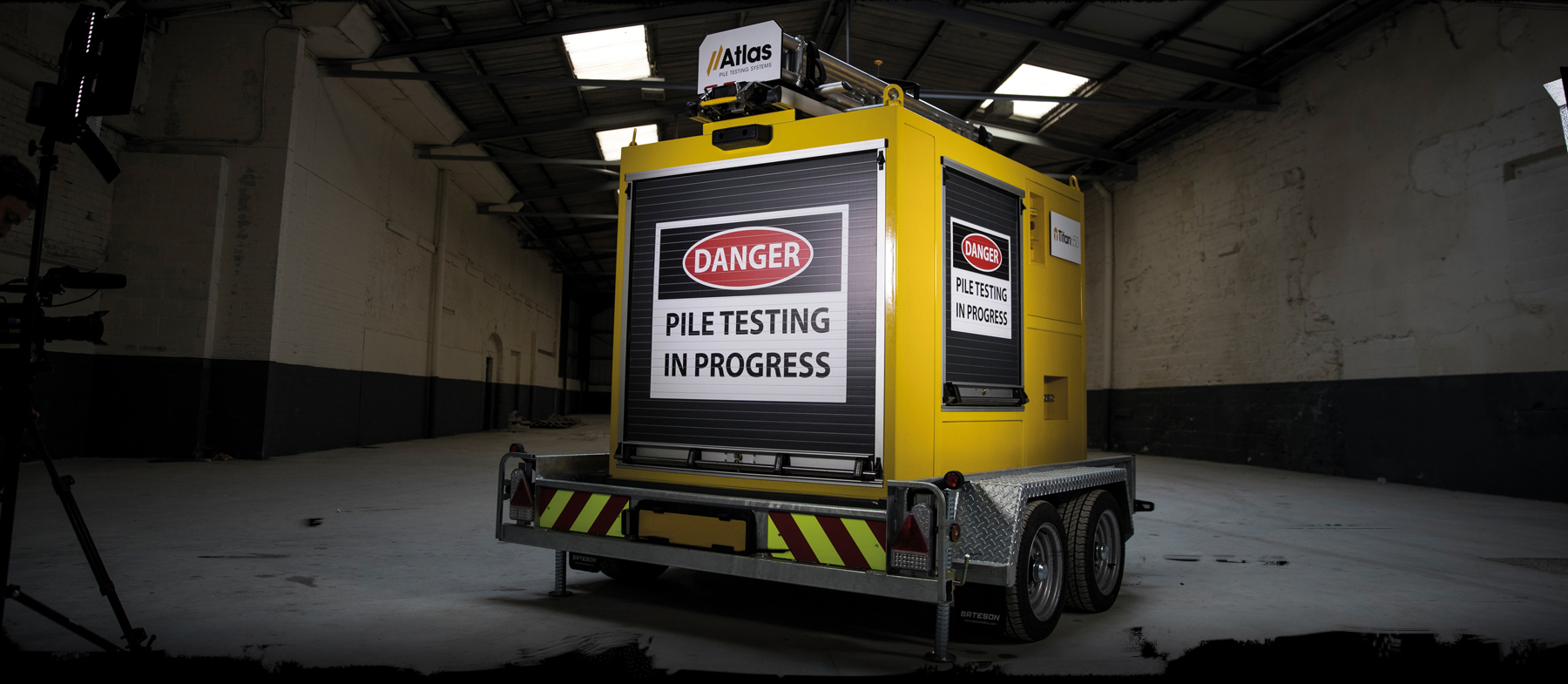

Specification – Titan 650
The Titan 650 is equipped with a sophisticated pump control system and SMART technology.
An onboard Siemens Series 1200 PLC module controls the Titan 650 which is equipped with 3G / 4G modem and wireless connectivity, controlled by a Touch Screen Control Console.
Wireless sensors are housed in charging units onboard the Titan 650.
General Detail
Colour
Traffic yellow, dark grey
Weight
1869kgs
Dimensions
Width
1524mm
Height (without trailer)
2225mm
Length
2112mm
Materials
Frame
RHS Steel, zinc primed two stage wet paint system
Panels
8mm UV Stabilised Polyethylene
Doors

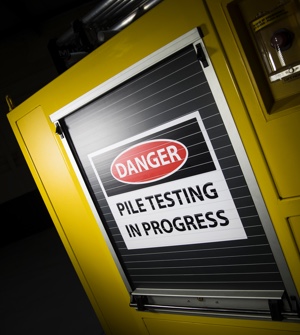

Aluminium lockable roller shutter doors
Utility
Lighting
LED auto internal lighting
Crane Lift
Top mounted lifting eyes 4No. each 2.5 ton rated
Fork-lift
Compatible
Storage system
Roof top reference frame storage and dispensing system
Reference frame
Beams
6No. 2200mm x 300mm quick fit truss frames
Stands
4No. 750mm c/w height adjustment
Bracings
4No. 1200mm snap lock
Utility & Storage
Lockable reference frame dispensing system
Top mounted lifting eyes each rated 2.5ton
Skid base design for rough terrain
Fork lift lifting inlets
Vanguard lockable roller shutter doors
Bespoke storage compartments
LED internal, power save lighting system
Encapsulated power supply and power train
Load delivery system
Oil capacity
100 litre
Oil type
Meets DIN 51524 pt. 1 & 2. Bio46, ISO VG 46, 98% Bio-degradable
Oil filteration system
Oil level
External oil level optic
Oil level indicator sensor
4-20mA, Accuracy +/- 0.25% FS
Oil temperature sensor
4-20mA, Accuracy +/- 0.25% FS (0-100ºC)
Pressure hoses
2No. 10m Feed & Return Hoses 700 Bar rating, 2800bar burst pressure rating. Quick couple unions, threaded taper lock unions to jack
Chassis mounted hydraulic ports (feed and return)
External taper lock unions
Maximum delivery pressure
660 bar
Maximum delivery rate
13 litres/min
Minimum pulse rate
100 milliseconds
Controllable accumulator pressure
95 - 115 bar
Intensifier multiplier
X6 (Max. 660 bar)
24Vdc compressor
2.2KW Motor, Output 6Litres/min @120 bar
Variable SMART valve pressure regulating manifold
(Multi orifice pressure control manifold MOPCoM)
Automated pressure delivery system
Automatic closed loop load control application system
Manual pressure release valves
Manual release over-ride valves (High & Low)
Power Supply
Internal Supply
6No. 260AHr 12Vdc, AGM Non-spill, internal, encapsulated, battery bank providing 780AHr @24Vdc
Charging Point
110/240Vac dual ports (18 hours for full charge)
Main Isolator
Manual battery isolator c/w secondary 200Amp circuit breaker
Emergency Isolator
Emergency compressor ‘E Stop Switch’
Power Management
Digital Management Interface
Sensor Charging Station
Built-in wireless sensor charging ports with Peli case adaption
Control System
Touch Screen Control
15” Siemens HMI Touch-screen control console
IP Rating
IP65
Interface Lighting
Ambient automatic light sensing technology
Computer Control
Siemens series 1200 PLC module
Wireless Sensor Control Module
Datum wireless control module type, PH Hub
Wi-fi Access
On board in-built Wi-fi access point for local access control
Communications
3G/4G modem (Dual Redundant), Sierra Wireless AirLink RV50, c/w LTE worldwide bands, band 28 & 12. 300 Mbps down-link speed
USB Local down-load function
USB drive support
Remote Connectivity
VNC & Siemens Smart Client
GPS Tracking
Enabled
TEST SENSORS AND LOADCELLS
Storage
Peli storage cases c/w built-in charging ports
Clamps
5No. Super-clamps, 700mm reach
TITAN 650 Level Sensors
2No. +/- 0.057 degrees
Air Temperature
+/- 1ºC
Accumulator Pressure Sensor
mV/V, +/- 0.25%
Jack Pressure Sensor
mV/V +/- 0.25%
Load Cell
Load Cell
Geokon Model 3000 PH-SG-##, full bridge
Range (KN)
1500, 4000, 8000, 12000
Over-range
150% FS
Read frequency
8Hz
Resolution
0.025% FS
Accuracy
+/-0.5% FS
Temperature Range
-20ºC to +80ºC
Outside diameter (mm)
120, 230, 300, 405
Communications
In-built wireless transmitter
Power
12Vdc Li PO4 (2 weeks between charging)
IP Rating
IP66
Settlement & Uplift Sensors
Settlement & Uplift Sensors
Datum Model PH-P- ##
Range (mm)
100, 200
Read frequency
2Hz
Resolution
0.01% FS
Accuracy
+/-0.1% FS
Communications
In-built wireless transmitter
Power
12Vdc Li PO4 (2 weeks between charging)
IP Rating
IP66
Reaction Monitoring Sensors
Reaction Monitoring Sensors
Datum Model PH-T- ##
Range
+/- 15 degrees
Read frequency
2Hz
Resolution
0.009% FS
Accuracy
+/- 0.057% FS
Communications
In-built wireless transmitter
Power
12Vdc Li PO4 (2 weeks between charging)
IP Rating
IP66
Trailer System
Configuration
Twin axle heavy duty transport bed
Payload 3.5Ton Gross Vehicle Weight
GVW, Actual Weight 610Kg, Carrying Capacity 2890 Kg
Lighting
LED lighting with auto-switching 12 to 24Vdc
Lockable ball hitch
Standard
Stabilising legs
Standard
Spare wheel
Standard
